QNAP Requires RSA Keys and Certificates

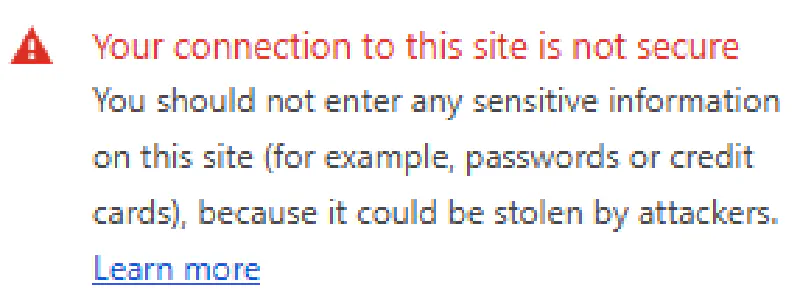

I’ve recently set up my own private certificate authority to issue keys for my private homelab domain, and I was ready to get rid of the browser warnings that come along with QNAP’s default cert:

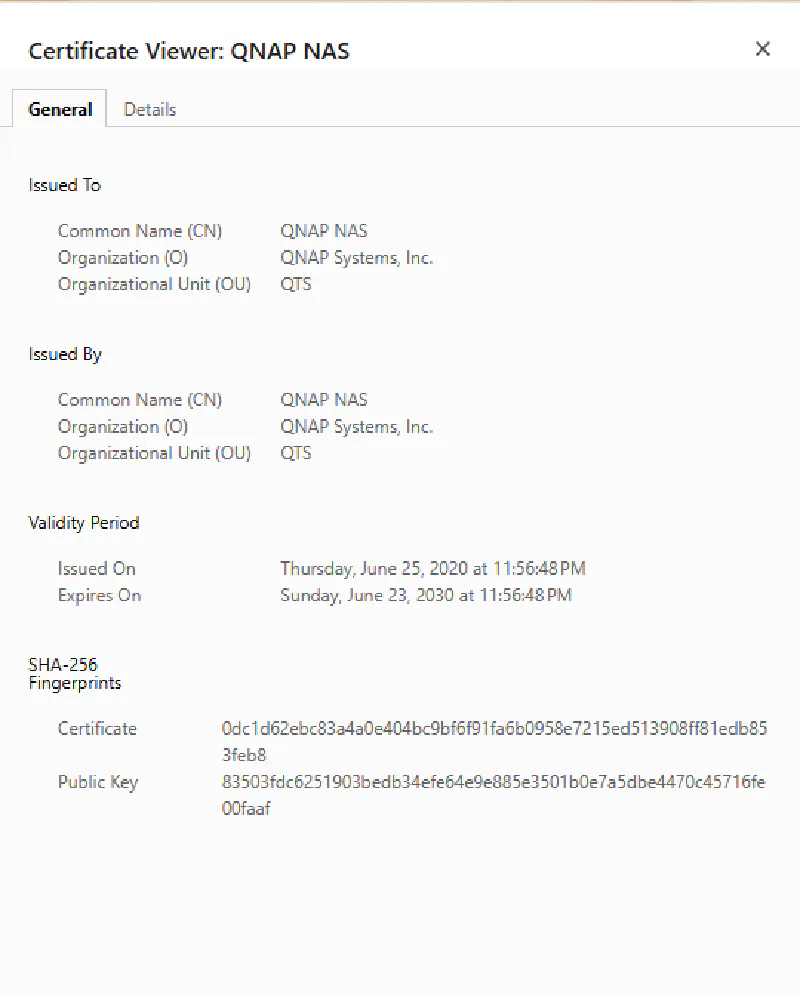

The warning is due to QNAP shipping QTS with a self-signed certificate.

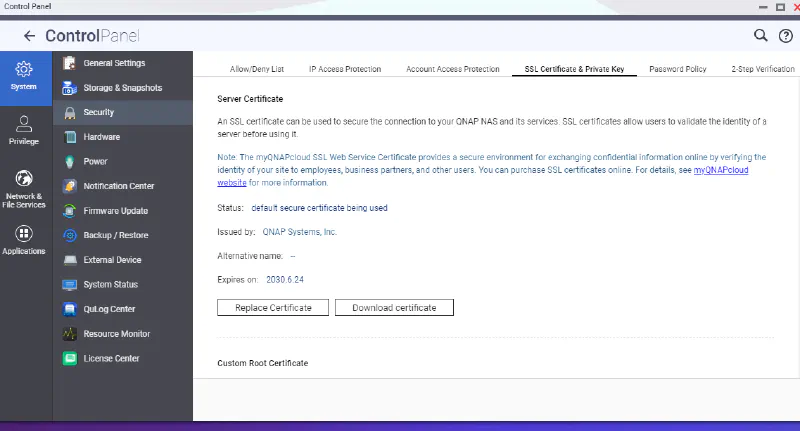

QNAP does allow you to replace this default cert with your own. You can find the menu to do so at Control Panel -> Security -> SSL Certificate & Private Key

I generated a new key and certificate and clicked Replace Certificate here. This takes you to a screen where you can upload the certificate and key.

Unfortunately, as soon as I browsed to the new key, the box turned red and I got an error message “The private key is incorrect. Please upload again.” Rude!

My internet searches were unusually fruitless on this error message. There were a few dead ends, but nothing that clearly pointed out the root cause: QNAP QTS requires / only accepts RSA keys¹ (and apparently no longer than 2048 bits, though I haven’t tested this). My step-ca certificate authority is based on an ECDSA chain.

$ openssl x509 -noout -text -in qnap-nas.crt
Certificate:
    Data:
        Version: 3 (0x2)
        Serial Number:
            XXXXXX
        Signature Algorithm: ecdsa-with-SHA256

That’s the cause of the failure, but neither the QNAP interface nor the QNAP docs will make this apparent.

It’s not easy to get step-ca to generate RSA keys (requires a second instance) but I also have an XCA certificate authority, which makes RSA key and cert generation very straightforward. I generated a new set.

$ openssl x509 -noout -text -in qnap-nas-rsa.crt
Certificate:
    Data:
        Version: 3 (0x2)
        Serial Number: XXXXXXX
        Signature Algorithm: sha256WithRSAEncryption

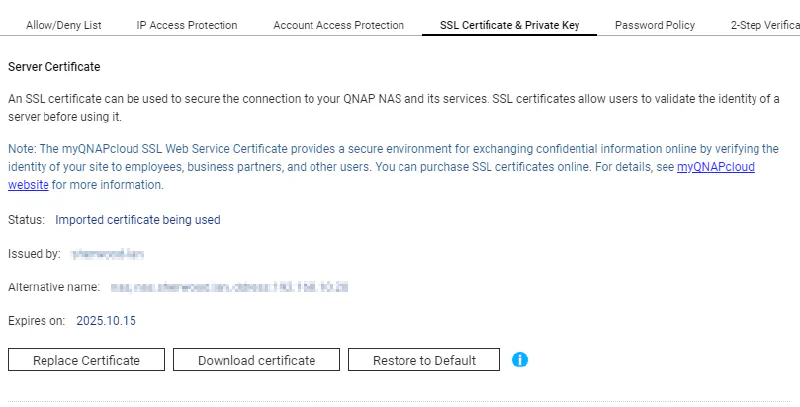

Back to QNAP to upload them. No error this time!

Problem solved.
